Rack Box Beam Roll Forming Machine

Contents

Racking Box Beam Roll Forming Machine is to make the racking shelving load beam section.

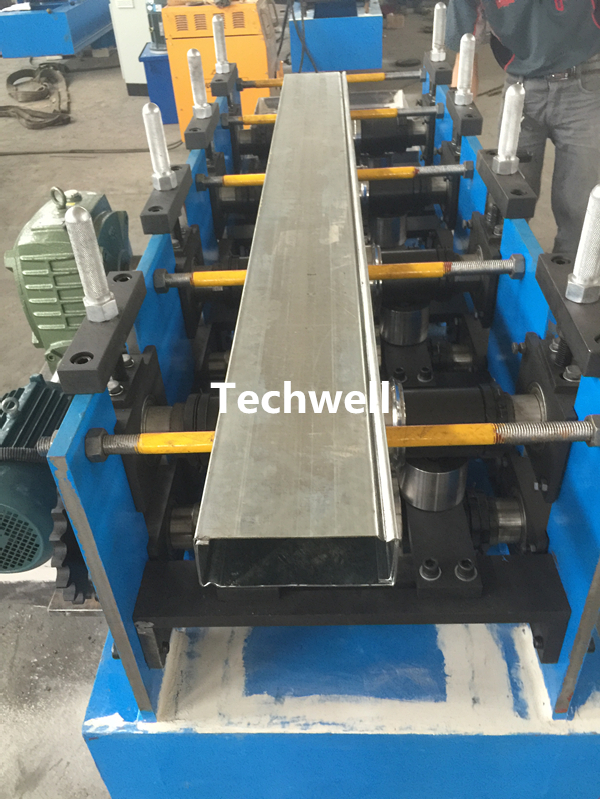

Racking system box beam forming machine is designed to produce various sizes of box beam sections as the client's profile drawing or requirements. The standard material thickness is 1.5-2.0mm, or upto 2.5mm.

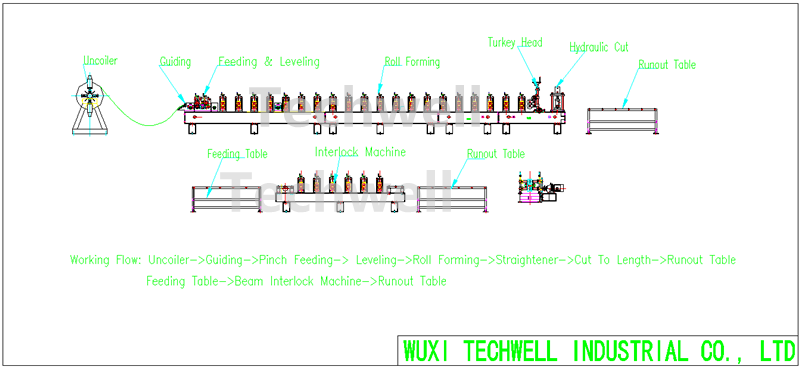

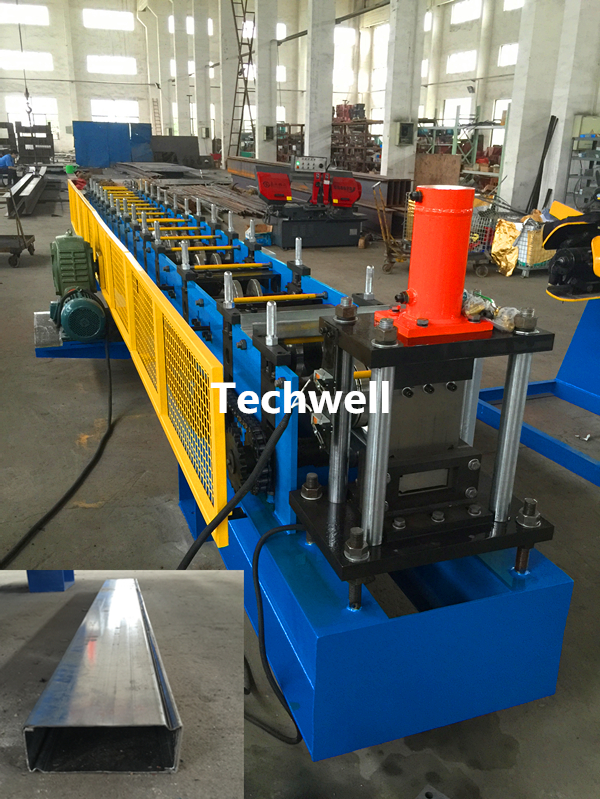

And the Whole box beam roll former is made up with 3 Ton Uncoiler, feeding & leveling, main roll forming, hydraulic cutting, hydraulic station, plc control board, support tables and box beam interlock machine.

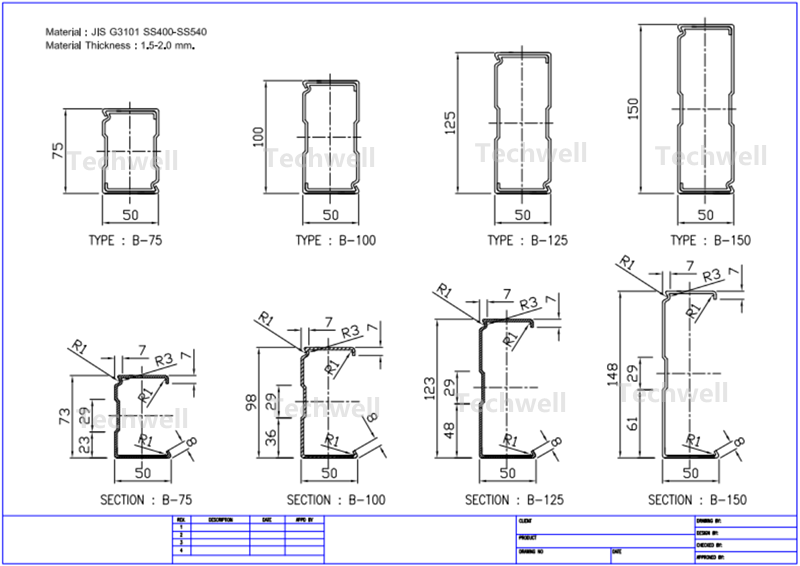

Box Beam Section Profile Drawing:

box beam section profile drawing

Main Specifications of Box Beam Roll Forming Machine
No.	Item		Parameter	Remark
1.	Suitable Material	Type	JIS G3101 SS400-SS540
		Thickness	1.5-2.5mm
		Width	Based on profile
2.	Profile Size		*C100 50mm C125 * 50mm**
3.	Line Speed		0-20m/min.	excluding cut time
3.	Forming Station		≈ 14
5.	Shaft Diameter		Φ70mm	Roll forming
			Φ75mm	Beam lock machine
6.	Roller Material		GCr15 bearing steel, HRC 58-62° and roller surface with hard chrome ≥ 0.05mm
7.	Drive Type		Chain Drive
8.	Forming Structure		Welded wall structure
9.	Motor Power	Main Machine	≈ 11KW + 3KW
		Hydraulic Stations	≈ 5.5KW	For cutting
10.	Total Power		≈ 19.5KW
11.	Electric Source		AC380V, 3 Phase	Or Customized
12.	Main Machine color		Blue	Or Customized
