New Design Box Beam Roll Forming Machine

Contents

New Design Integrated Self-Lock Box Beam Forming Machine is designed to produce racking shelving loading box beam sections, this new profiles no need an extra box beam interlock machine to roll the two pieces of box beam sections into a whole box shaped load beam. It will save material and labor cost for clients.

The new design type box beam section is self-jointed type. It will save width 80-90mm material and the labor cost for clients, but the capacity will be around 88%-90% of traditional box beams.

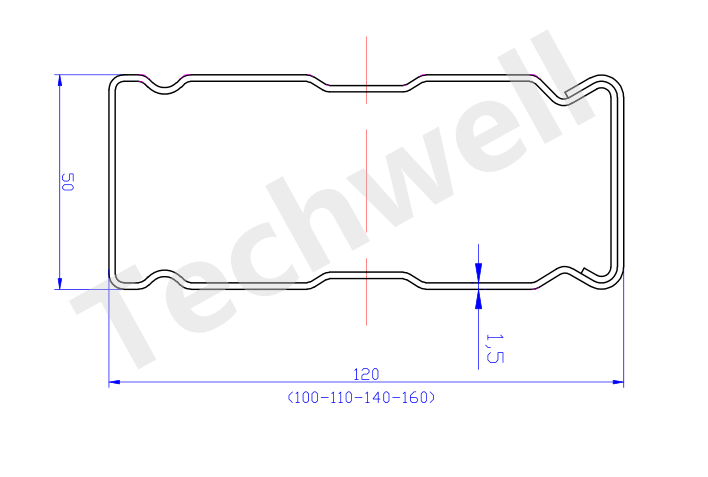

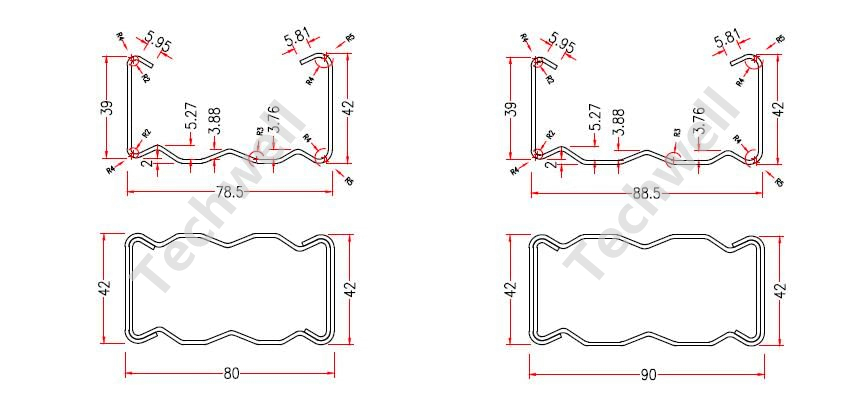

          New Design Self-Lock Box Beam Profiles                         Traditional Box Beam Profiles
 BOX BEAM PROFILE DRAWING  BOX BEAM PROFILE DRAWING



The components of The new design box beam roll forming machine

  • 5 Ton Uncoiler
  • Feeding & Leveling device
  • Main Roll Forming Mill
  • Flying Shear device
  • Hydraulic Station
  • PLC Control Board
  • Run-out Tables

Main Specifications of Self-Lock Box Beam Roll Forming Machine

No.

Item

Parameter

Remark

1.

Suitable Material

Type

Carbon steel, GI



Thickness

1.5-2.5mm



Width

Based on profile



2.

Profile Size

100 * 50mm

110 * 50mm

140 * 50mm

160 * 50mm





3.

Line Speed

0-20m/min.

excluding cut time

3.

Forming Station

 24-28



5.

Shaft Diameter

Φ80mm

Roll forming

6.

Roller Material

GCr15 bearing steel, HRC 58-62° and roller surface with hard chrome ≥ 0.05mm

7.

Drive Type

Gearbox Drive

8.

Forming Structure

Iron Cast Cassette Type

9.

Motor Power

Main Machine

 18.5KW * 2



Hydraulic Stations



 11KW

For cutting

10.

Electric Source

AC380V, 3 Phase

Or Customized

11.

Main Machine color

Blue

Or Customized

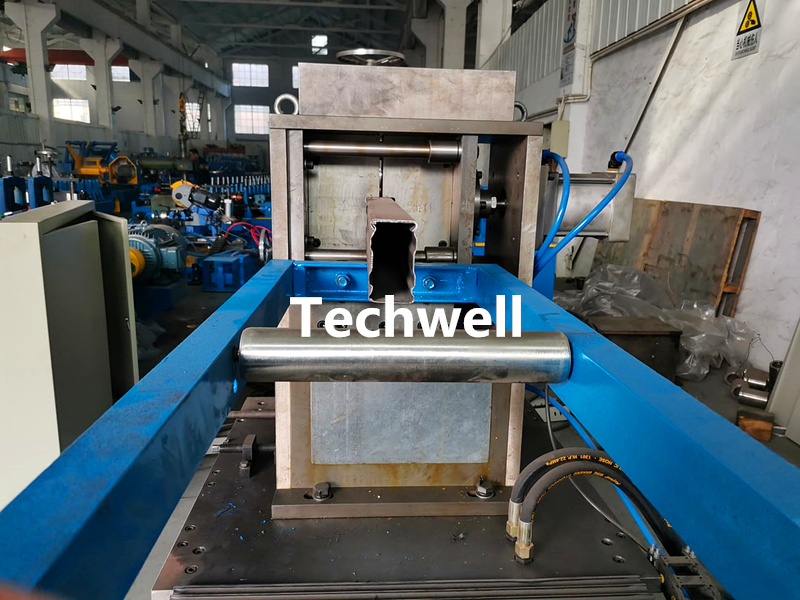

 self lock box beam roll forming machine
