Upright Section Roll Forming Machine

Upright rack section roll forming machine also called Upright Column Roll Forming Machine, which is for producing upright rack colums for storage warehouse pallet racking system, the upright profile dimension and thickness are adjustable and customized.

Upright Section | Upright Columns profiles with different dimension and design was depent on the load capacity and styles, like the L Shape structure is for light-weight capacity, the C or Omega shape structure is medium-duty capacity, the Special or C or Omega type is for heavy-duty capacity. And the Punching holes like Tear drop design, butterfly desingn. etc and slots are punched on line or off line so that the load beams can be mounted into the upright racks. The thickness of upright racks is upto 3mm.

The multi-profiles Upright roll forming machine can produce various profiles by adjusting the rollers spacers and changing cutting dies in the cold-form industries. It can continuously form the steel strip into the product according to customer’s requirement and cut to length automatically. This equipment has many advantages with low noise, stable transmission, easy operation, good looking and so on.

 This adjustable rack system roll forming machine line consists of 4 ton Hydraulic Decoiler, Feeding & Leveling Device, Servo Feeding, 80 Ton Press Machine, Main Roll Forming Part, flying shearing, Hydraulic Station, PLC Controllers, Non-power Type Support Table.

The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.

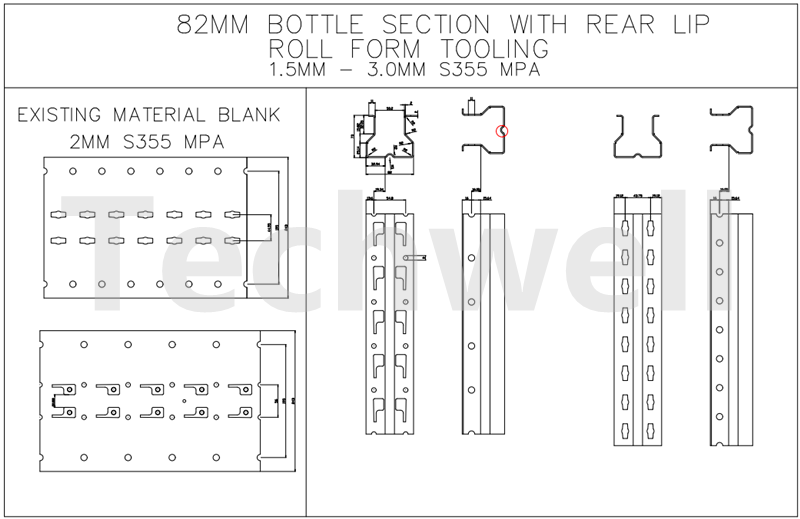

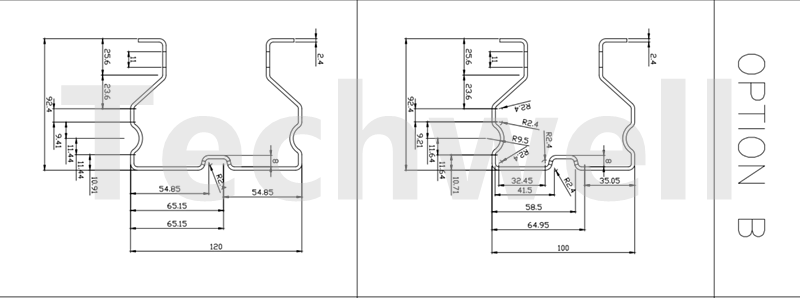

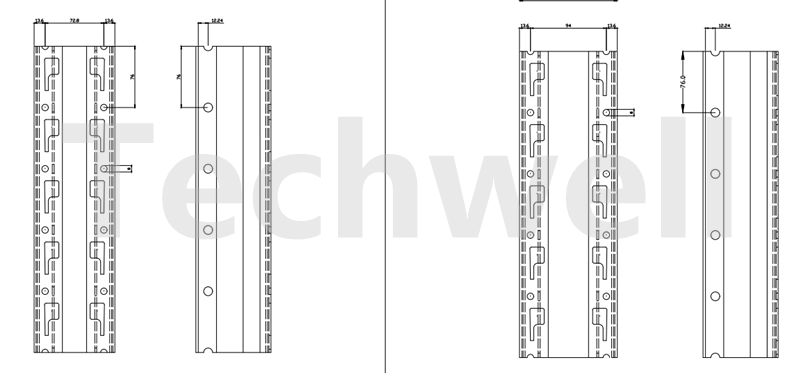

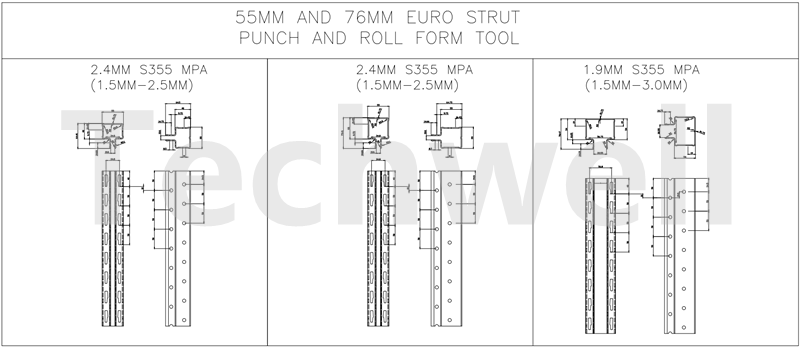

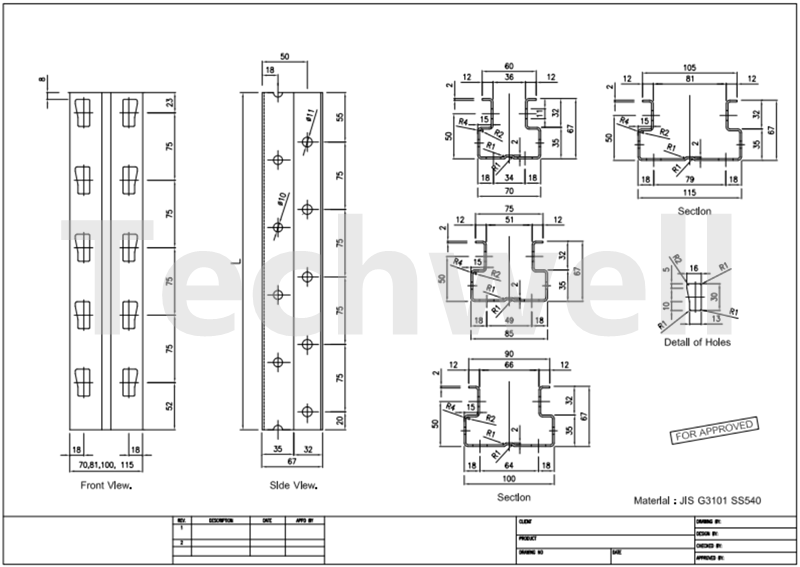

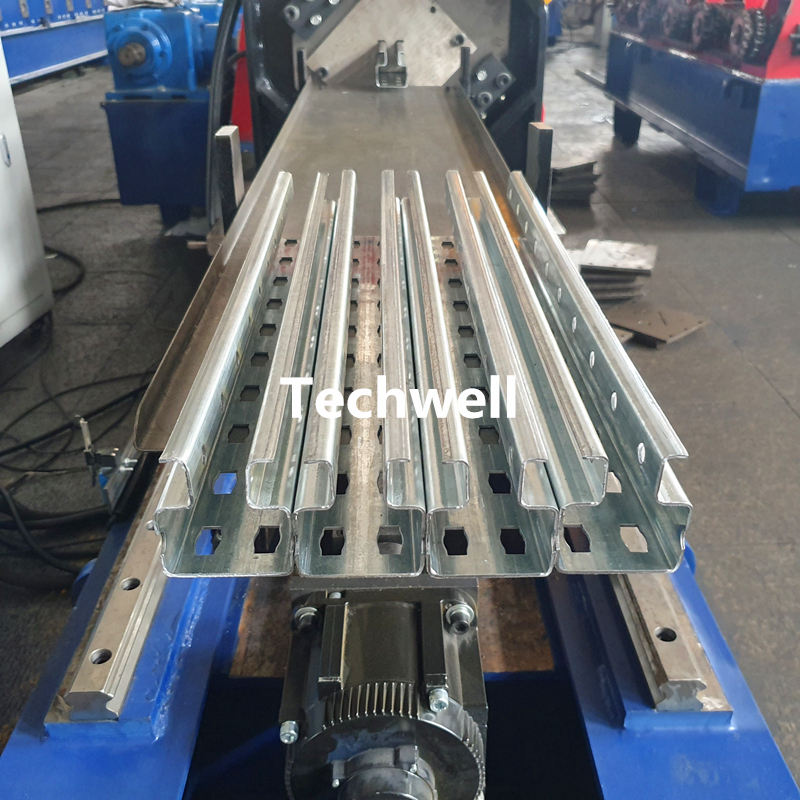

The Upright Section Drawing as follows ,

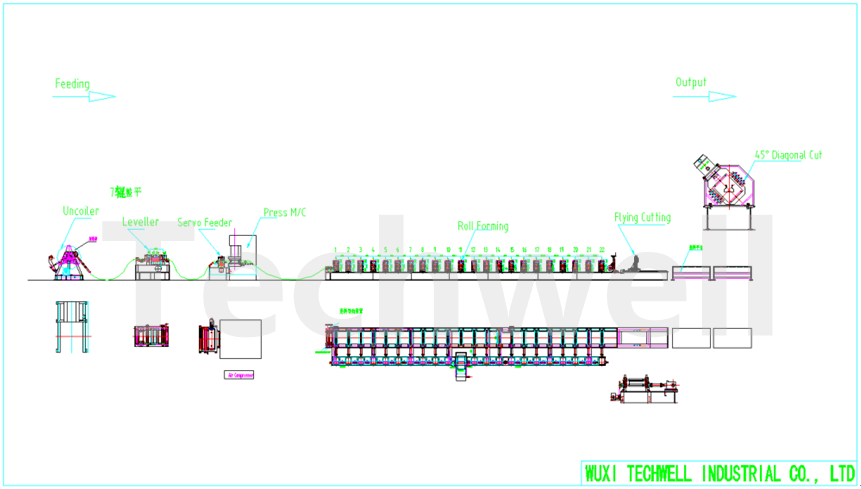

The layout of the Upright rack roll forming machine
