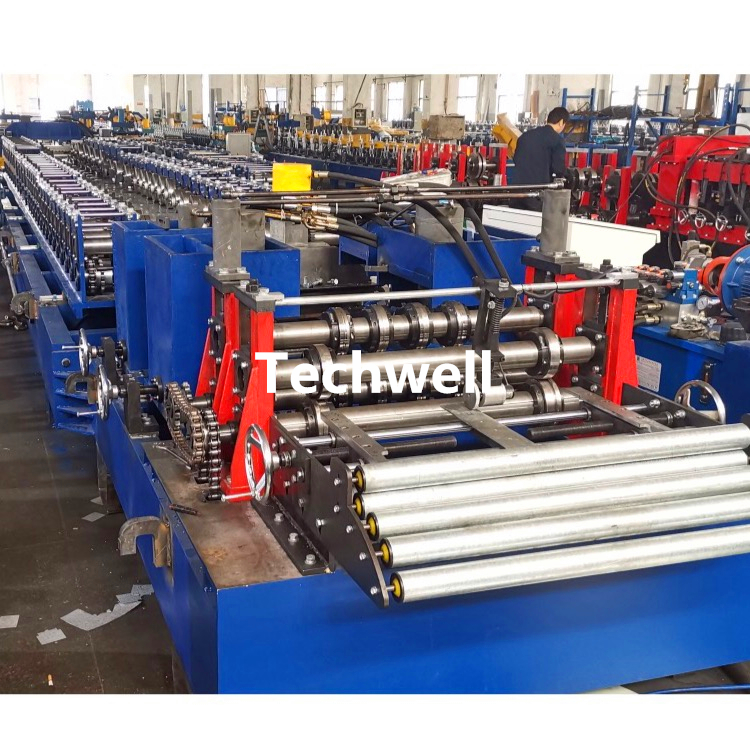

Supermarket Racking Shelving Panel Roll Forming Machine is to produce shelving panels with multi Auto size adjusting system for different panel sizes.

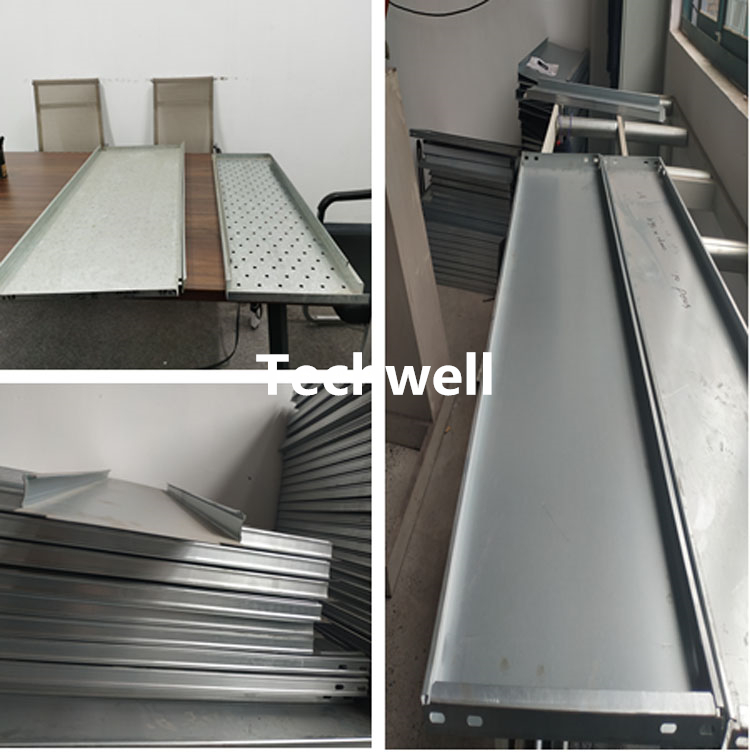

Shelving Panel is used to load the goods or pakages and also display the goods prices and informations, usually the width of panels is various for different load capacity.

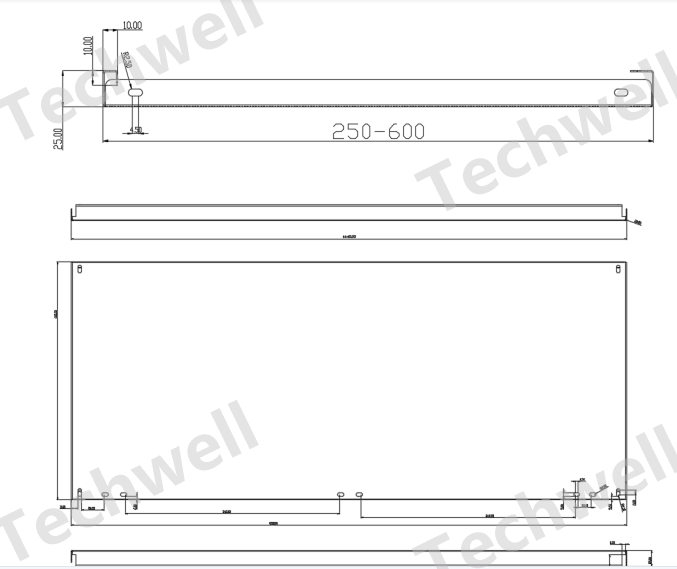

The shelf panel profile drawing

shelf panel profile drawing

The Main Technical Specification of Shelf Panel Roll Forming Machine

NO.	Name	QTY	Remark
1	5T hydraulic decoiler	1 set	1)Max 5T 2)Max coil:1000mm 3)Hydraulic expansion and motorizied decoiling
2	Guiding and leveling	1 set	1)2+5+2 rolls leveling 2) Leveling motor:5.5kw 3) Leveling roll dia 90mm
3	Servo feeder	1 set	1. Feeder servo motor power: 2.2.9KW+1 with planetary reducer 3. Servo motor brand: Beijing Super Synchronous
4	Holes Punching & corner cut	4 sets	1.We use hydraulic punching machine 2.Corner cut mould:2 sets ( left and right side can be adjustable manually) 3.Lateral holes punching mould: 1 set( position can be adjustable manually) .4.Punching: hydraulic punching 5.Material of upper and lower mould: Cr12MOV 6. Heat treatment method of upper and lower molds: quenching HRC58-60

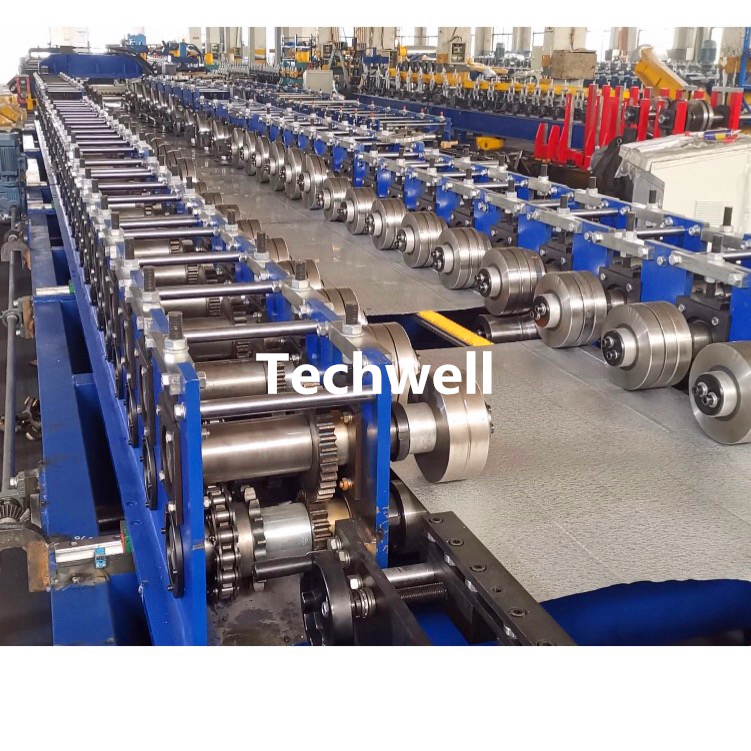

5	Roll forming Machine	1 set	1)wall panel catilever structure 2) 20 forming stations 3)7.5KW motor made in China 4) Rolled thickness:max 1.2mm 5) Shaft dia 60mm
5	Hydraulic Cutting&bending mould combination	1 set	1)Cutting power:11 kw 2)Cutting and bending Mould :1 set,mould material:Cr12.HRC58-62 3)Servo-motor control non-stop cutting and bending:5.5kw
6	Run-out table	2pcs	1)Steel frame with Rollers
7	Electric control panel	1 set	1)PLC control system ,Siemens from German brand 2)Yaskawa inverter from Japan
8	Hydraulic system	1 set	1)Solenoid is made in China
