Warehouse Racking Shelf Back Panel Roll Forming Machine is one of our most featuring machines, and it is featured with fully automatic production, automatic width adjustable, automatic notching and perforating, automatic shearing and bending, easy operation etc.

Shelf Panels are widely used for storage shelves, supermarket shelves, light-weight shelves, and industry heavy-duty shelves.

The Parameter of Racking Shelf Panel Production Line

NO.	Name	QTY	Remark
1	5T hydraulic decoiler	1 set	1)Max 5T 2)Max coil:1000mm 3)Hydraulic expansion and motorizied decoiling
2	Guiding and leveling	1 set	1)2+5+2 rolls leveling 2) Leveling motor:5.5kw 3) Leveling roll dia 90mm
3	Servo feeder	1 set	1. Feeder servo motor power: 2.2.9KW+1 with planetary reducer 3. Servo motor brand: Beijing Super Synchronous
4	Holes Punching & corner cut	4 sets	1.We use hydraulic punching machine 2.Corner cut mould:2 sets ( left and right side can be adjustable manually) 3.Lateral holes punching mould: 1 set( position can be adjustable manually) .4.Punching: hydraulic punching 5.Material of upper and lower mould: Cr12MOV 6. Heat treatment method of upper and lower molds: quenching HRC58-60
5	Roll forming Machine	1 set	1)wall panel catilever structure 2) 20 forming stations 3)7.5KW motor made in China 4) Rolled thickness:max 1.2mm 5) Shaft dia 60mm
5	Hydraulic Cutting&bending mould combination	1 set	1)Cutting power:11 kw 2)Cutting and bending Mould :1 set,mould material:Cr12.HRC58-62 3)Servo-motor control non-stop cutting and bending:5.5kw
6	Run-out table	2pcs	1)Steel frame with Rollers
7	Electric control panel	1 set	1)PLC control system ,Siemens from German brand 2)Yaskawa inverter from Japan
8	Hydraulic system	1 set	1)Solenoid is made in China

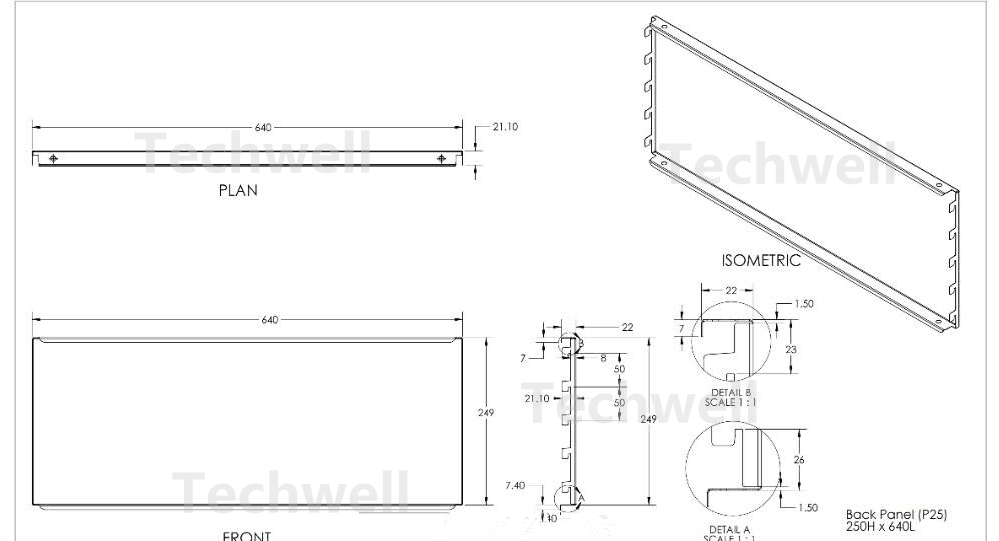

Shelf Panel Profile Drawings

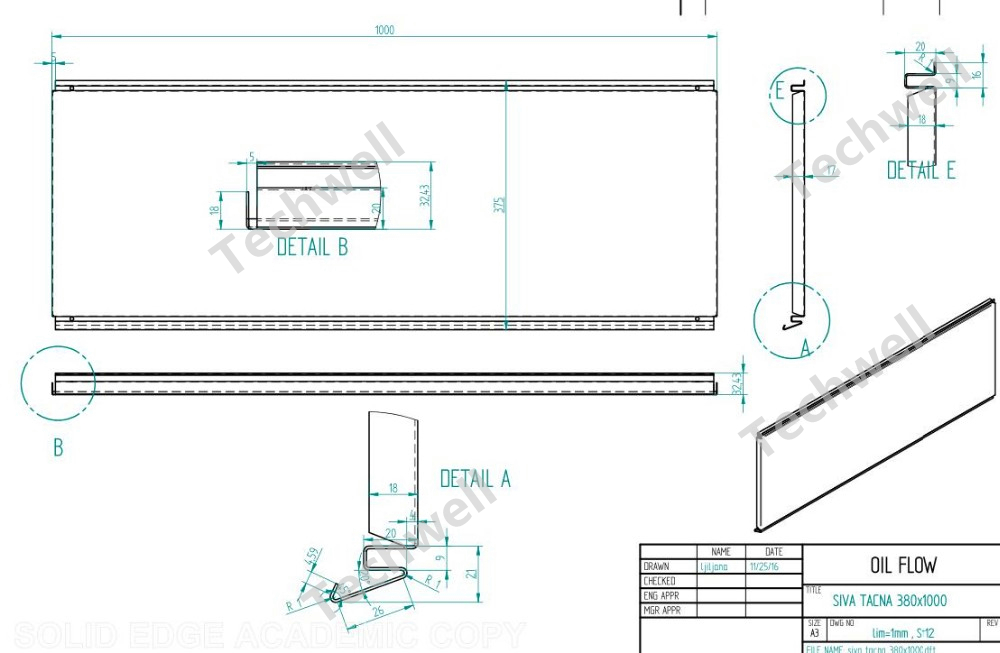

shelf panel profile drawing

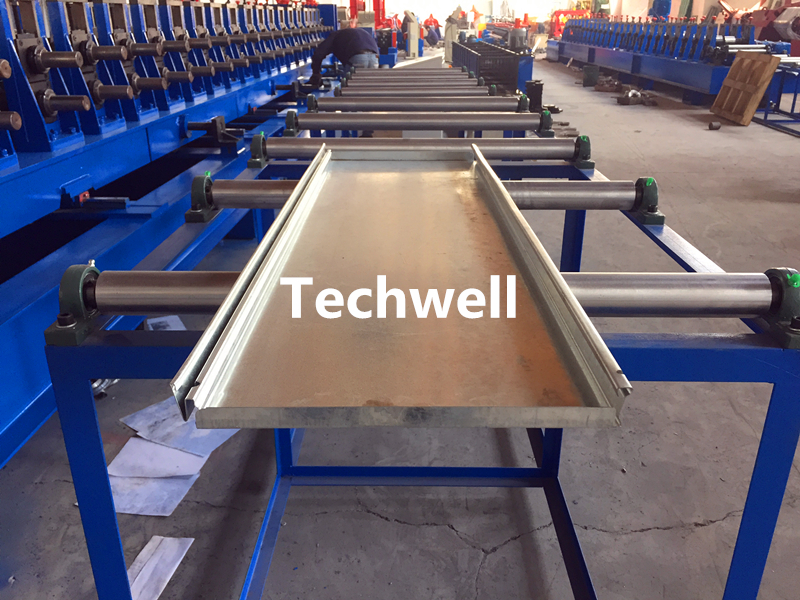

shelf panel roll forming machine

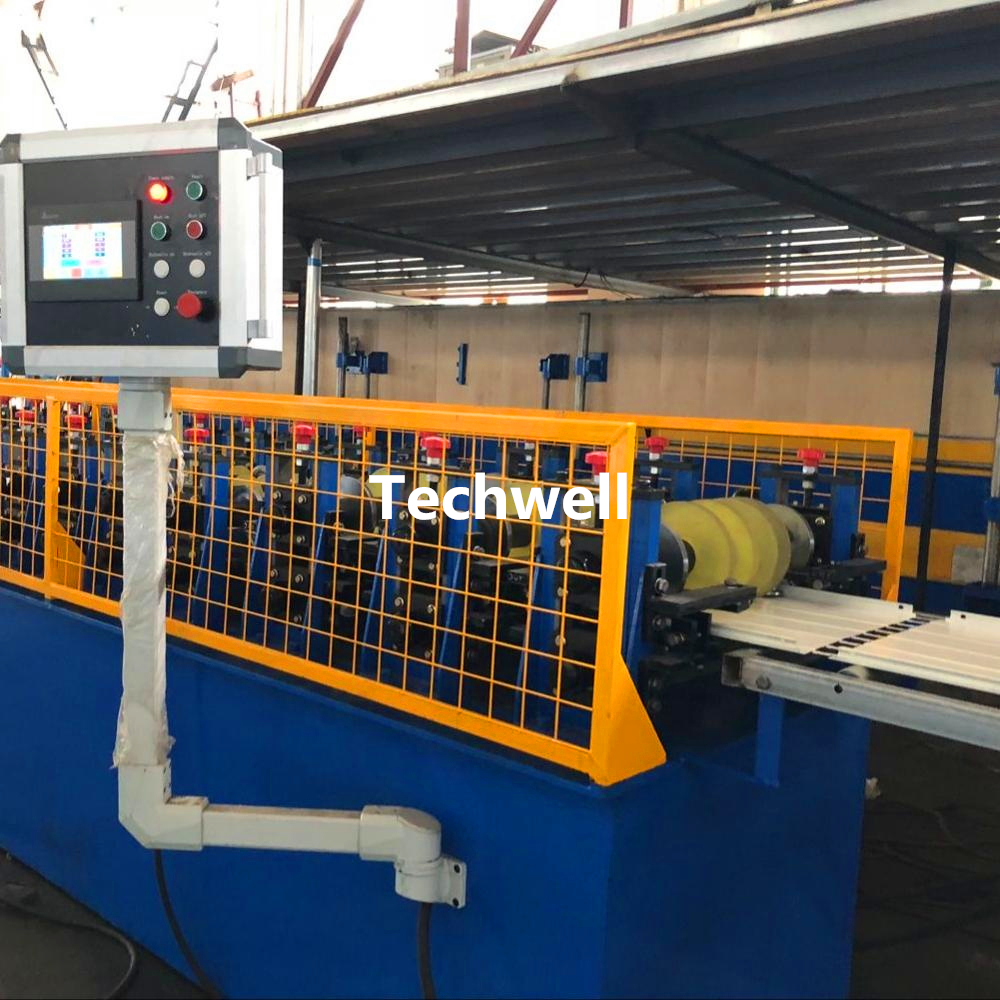

rack panel roll forming machine

More Shelf Panel Roll Forming Machine Pictures

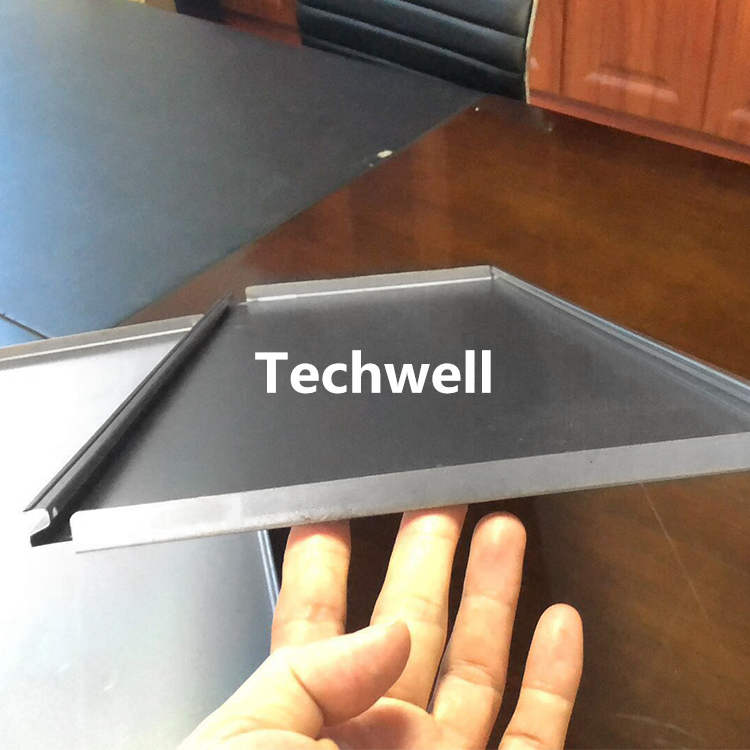

pallet panel roll forming machine

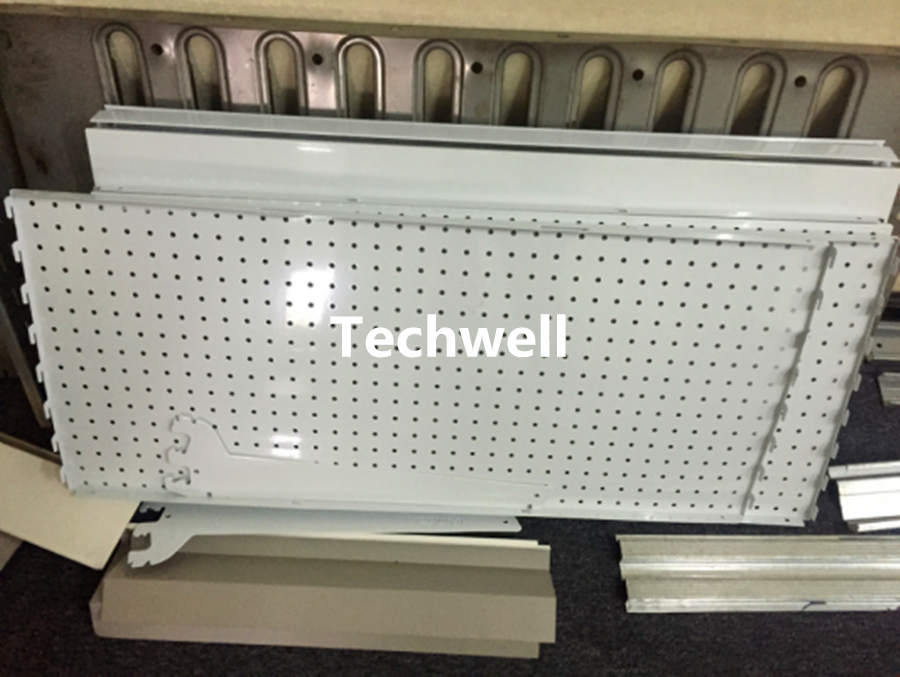

rack shelf panel production line

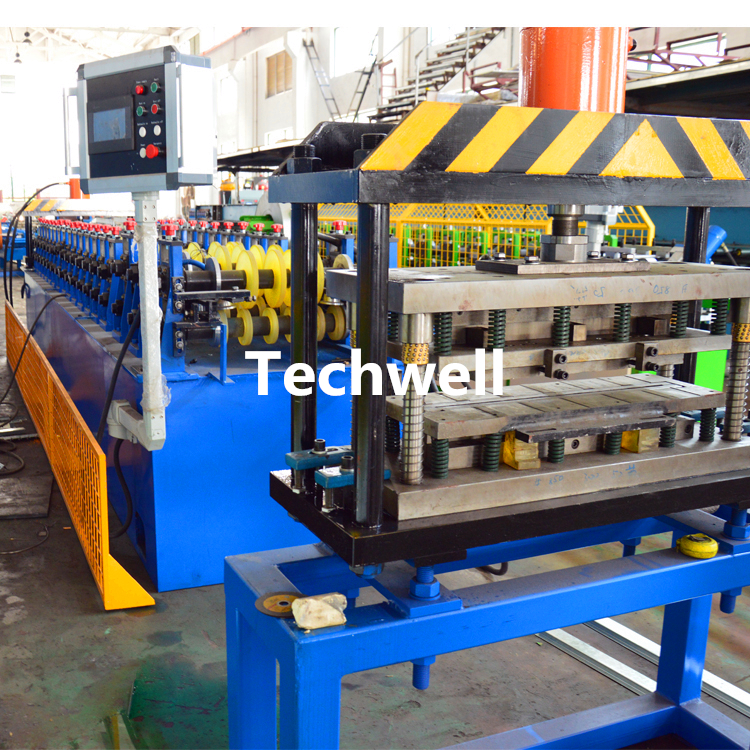

shelf panel production line

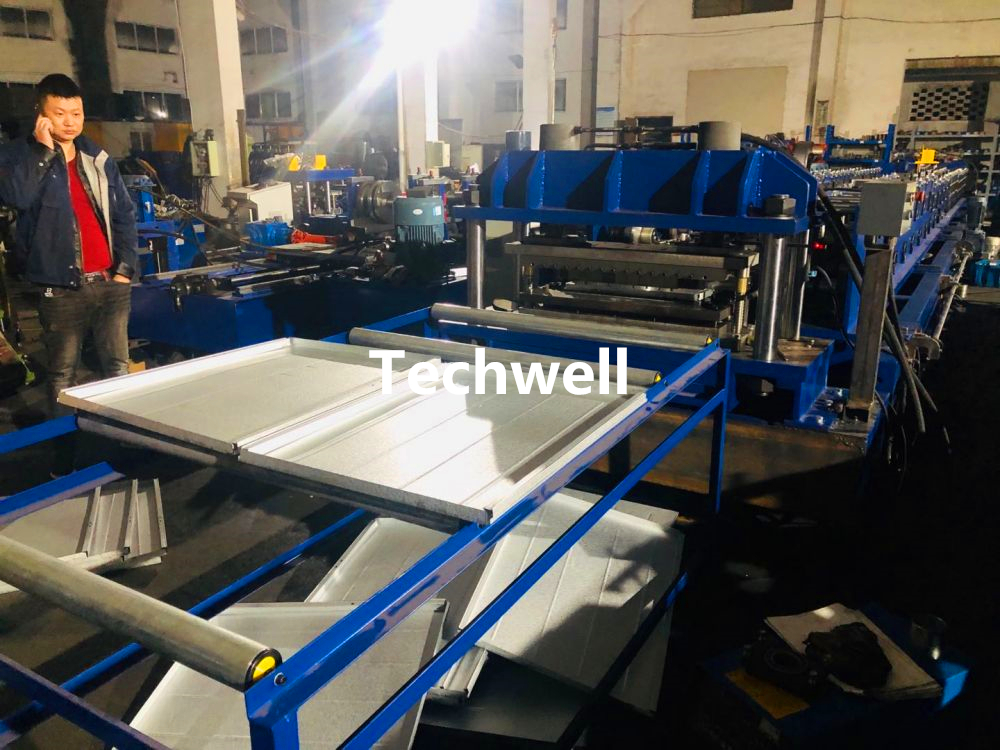

shelf panel forming machines
