1-2mm Cable Ladder Roll Forming Machine 200-600mm


1mm-2mm Cable Ladder Roll Forming Machine for Cable Ladder Profile Web 200-600mm

We supply a complete Cable tray ladder production line for the production of all types of cable trays for carrying the energy cables and the communication cables.

All cable trays and there covers are produced in the roll forming line which is consisting of the decoiler, straightener, feeder, roll forming machines, punching unit, cutting device and the stacking unit.

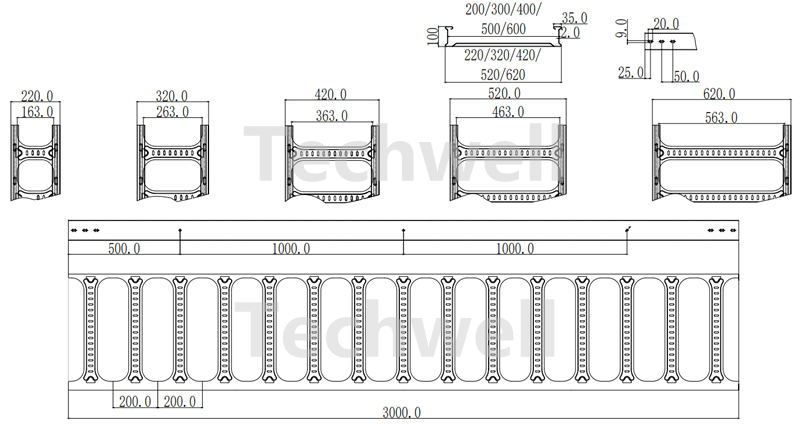

Cable Ladder profile drawing:

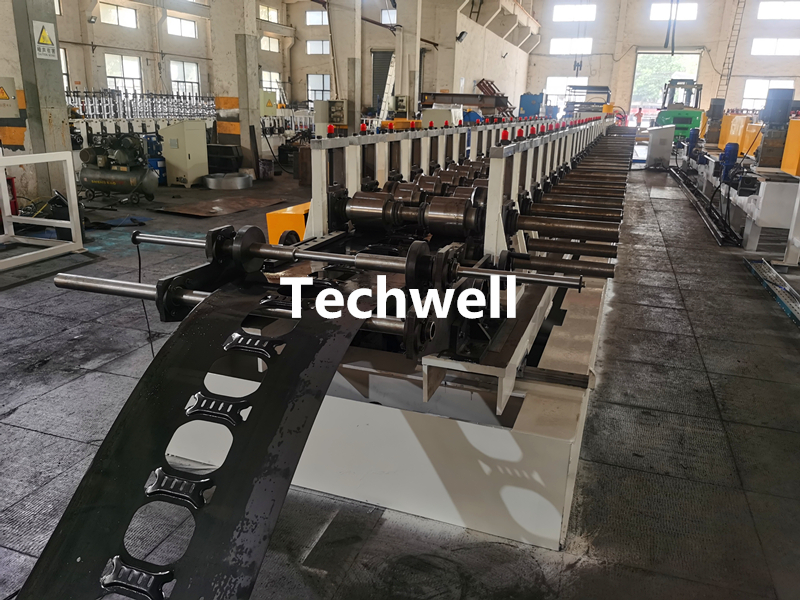

cable ladder roll forming machine

Cable Tray making machine line is commonly used for cable management in commercial and industrial construction. This roll former could produce different types of cable trays with web size 100-600mm, height 50-100mm, such as, Solid bottom cable tray, Trough cable tray, Channel cable tray, Perforated cable tray, Non perforated cable tray and Trunking cable tray etc. The profile is with different raw materials such as, hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel and aluminum. Normally Thickness range of material is from 0.6mm to 1.2mm or 1.0mm - 2.0 mm, even uptp 2.5mm. You could set up 10 different lengths for cable tray. Our roll forming machine could produce wide range of sizes, and automatically change by motors from one size to the other not only at width but also at height. The only step is put your required data into our touch screen and wait for few seconds. And other wise innovation is that one machine could make cable trays and covers of corresponding size. Change time is only 30 minutes, easy to operate, low-cost and save area. We have experience of exporting our cable tray roll formers to Argentina, Russia, Australia etc.


Cable tray roll forming machine is used to produce sheet metal by continuous cold rolling.This type of colored tile forming machine is composed decoiler, Pront-cutting device, feeding device, machine base, punching device, roll forming unit, and back- cutting device, run out table, hydraulic system and electronic control system.

The main specification of Cable ladder production Line:

Raw Material Cold-Rolled Steel, Hot-Rolled Steel
Yield Strength 235 Mpa
Thickness 1.0-2.0 mm
Raw Material Coil According to different type cable tray
Plate Length 3 Meters
Coil ID Φ508±20 mm
Coil OD ≤Φ1100 mm
Coil Weight ≤ 5 Tons
Roll Forming Speed 0-10 M/min (according to Plate Length 6 meters)
Length Tolerance ±2 mm
Power Source 380 V±10%, 50-60 Hz (according to buyer’s request)
Total Power About 45 KW

More Cable Tray Ladder Roll Forming Machines:

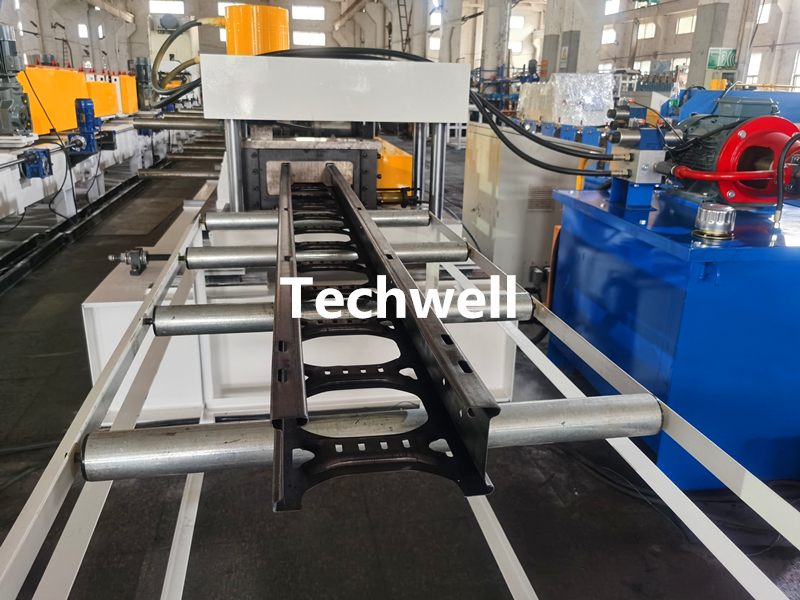

cable ladder forming machine

cable ladder production line
