TECHWELL supply a complete Cable Tray Production Line for the production of all types of cable trays for carrying the communication cables and the energy cables. All cable trays and the covers are produced in the roll forming line which is consisting of the decoiler, straightener, servo feeder, roll forming machine, punching unit, cutting machine and the stacking unit.

Cable trays are used to carry various types of cables such as power distribution, control, and communication. Cable tray system is the alternative to open wiring or electrical conduit systems which are commonly used for cable management in commercial and industrial construction.

Several types of tray are used in different applications:

• Ventilated Cable Tray has openings in the bottom of the tray, allowing the air circulation around the cables.

• Ladder Cabe Tray has the cables supported by a traverse bar, similarly to the rungs of a ladder, at regular intervals on the order of 100 to 300 mm.
• Channel Cable Tray is used for installations with limited numbers of tray cable when conduit is undesirable.

• Wire Mesh Cable Tray is more appropriate for usage of a great number of small cables are used, such as for telephone or computer network cables.

• Material width: 100 – 600 mm
• Material thickness: 0.8 – 2.0 mm
• Rolling speed: 0-8 m/min

• Roller stations: 20 stations

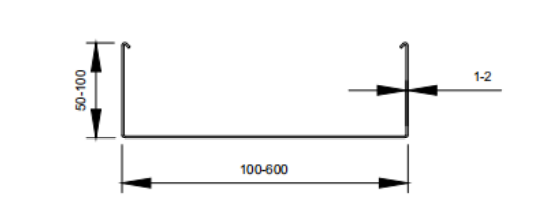

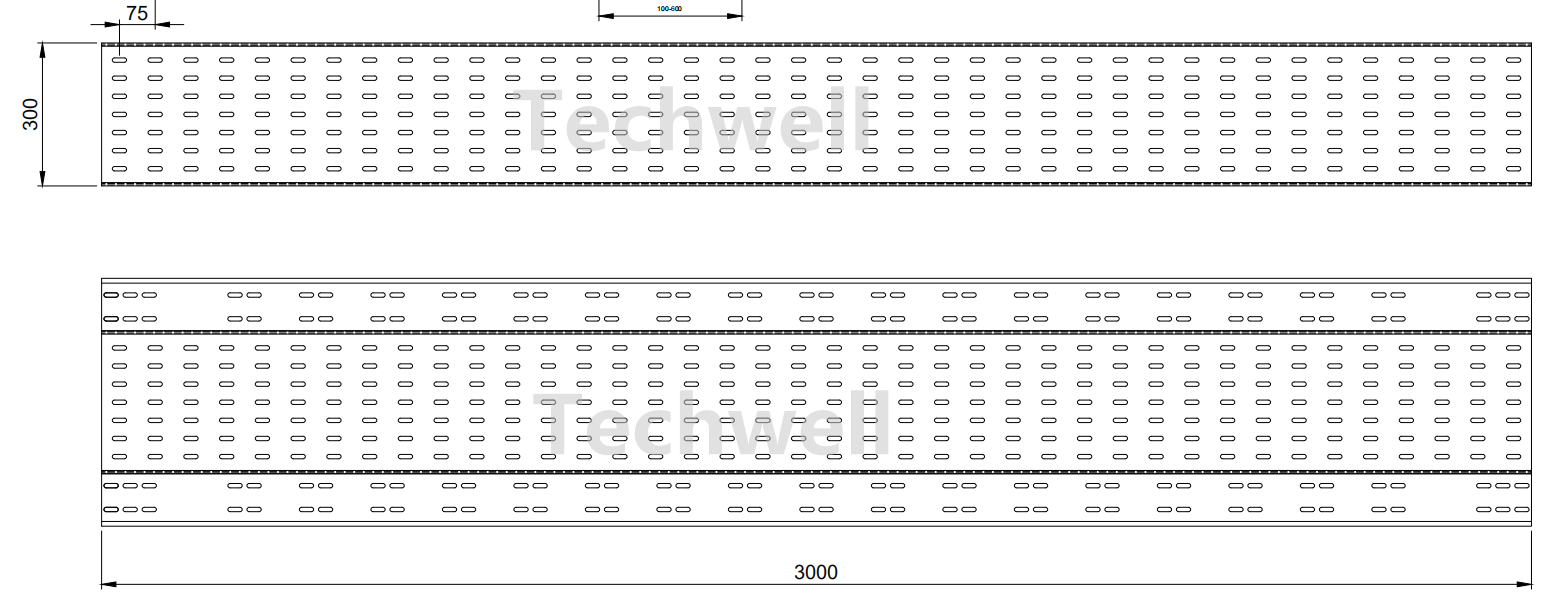

Cable Tray Profile Drawings:

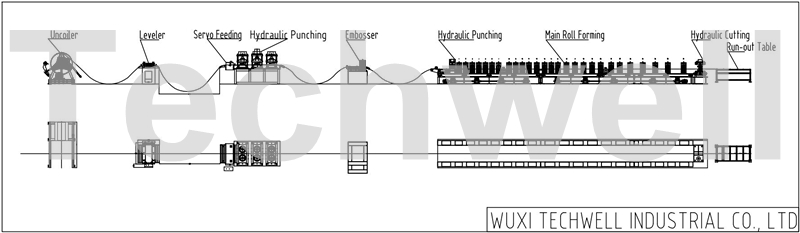

Layout of Cable Tray Production Line :

Working Video of Cable Tray Roll Forming Machine:

More Cable Tray Production Line Photos:
