Racking Step Beam Roll Forming Machine

Contents

Pallet Rack Step Beam Production Line

Pallet Rack Step Beam Roll Forming Machine is used to form rack P Step beams, also called cross beams for warehouse pallet racking shelving system, which support the pallet racks to assure the racks have adequate supports for the wieght of the products stored on them, ensuring the racks do not bow or create an unsafe condition. The racking beams manufactured by our rack beam roll forming machines are availabe in multiple length and also with different dimensions of beams suitable for almost any warehouse layout and products. The right beams allow you to store goods safely and securely while allowing complete accessibility for the material handling equipments.

The working Flow of Step Beam Roll Forming Machine

Uncoiler --> Feeding & Leveling --> Roll Forming --> Servo Tracking Spot Welding --> Flying Saw Cutting --> Run-out Tables

The Main Technical Specification

  • Material thickness: 1.2-1.6mm
  • Roller stations: 23  stations
  • Roller material: GCr15
  • Shaft material: 40Cr
  • Forming speed: 0-15m/min
  • Main motor power: 30Kww
  • Fly saw cutting power: 18.5Kw
  • PLC control panel: Panasonic

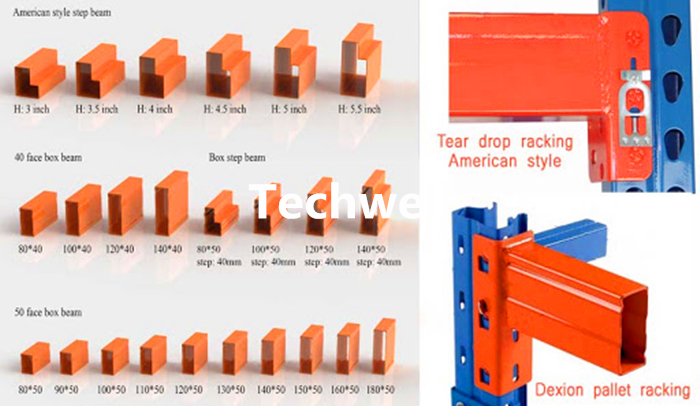

Step Beam Profiles

step beam profile drawing

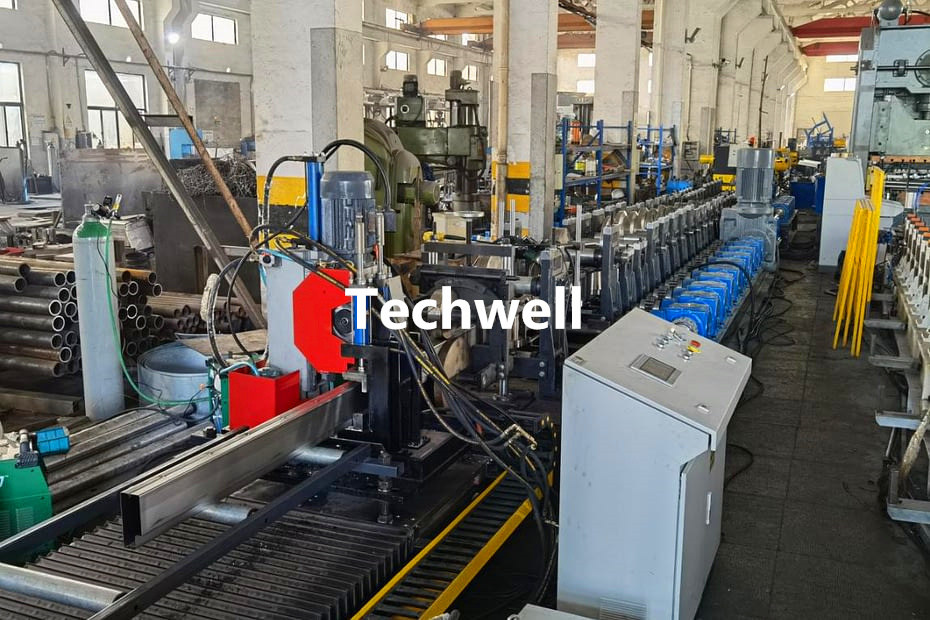

step beam roll forming machine

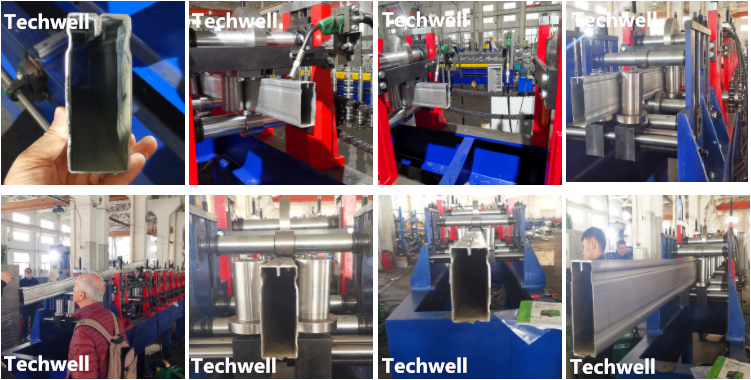

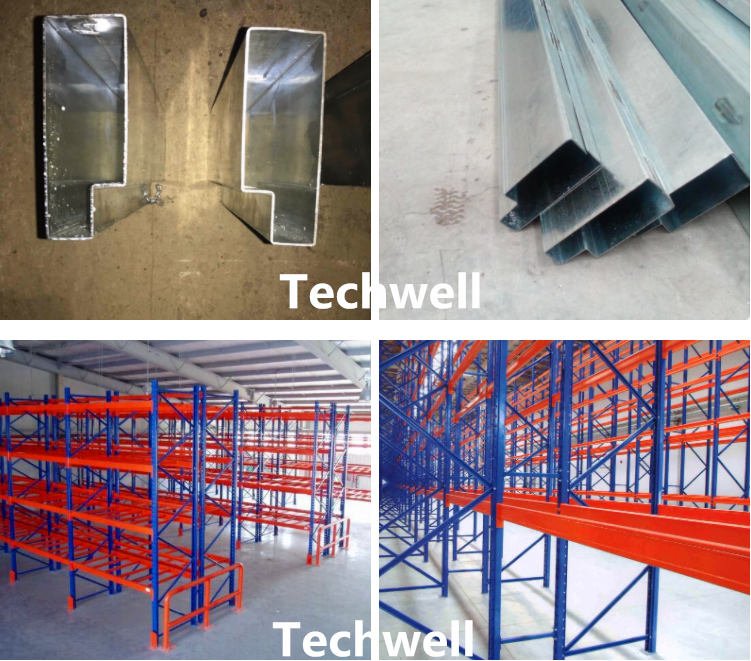

More Pictures of Pallet Rack Step Beam Roll Forming Machine

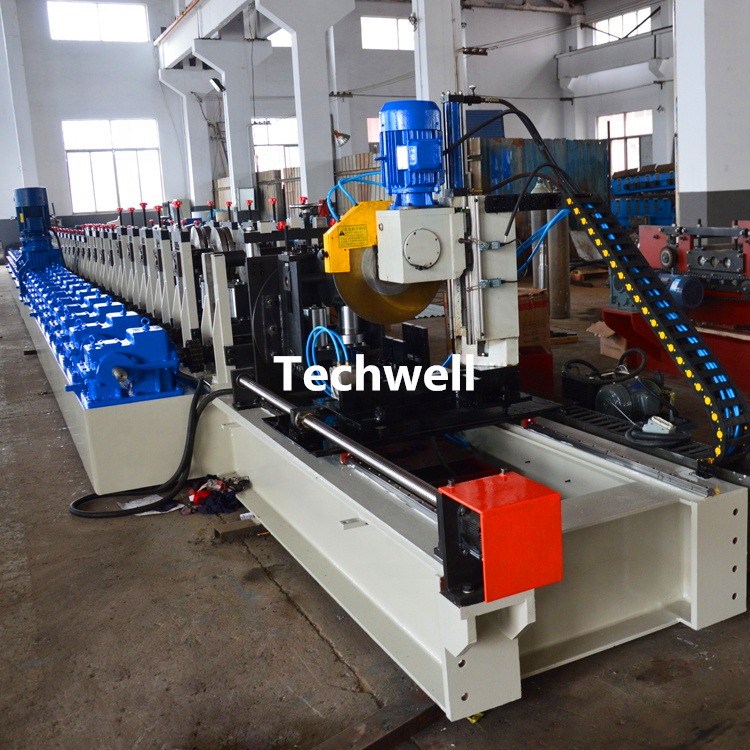

step beam roll forming machine

step beam roll forming machine

step beam roll forming machine
