Side Diagonal C Bracing Section Channel Roll Forming Machine

Rack Diagonal Bracing Channel Roll Forming Machine is used to produce rack side or diagonal bracing sections for warehouse pallet rack system, which is the inclined structal member carrying primarily axial force in a braced frame. The rack beacing manufactured by our rack bracing section roll forming machine are available in multiple lengths and also with different dimensions suitable for almist any warehouse structure.

Main Technical Parameter

• material thickness: 1.4-1.8mm
• roller stations: 13 stations
• roller material: GCr15
• shaft material: 40Cr
• forming speed: 15m/min
• PLC control panel: Panasonic

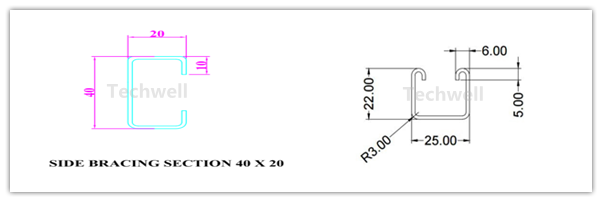

C Bracing Channel Profile Drawings

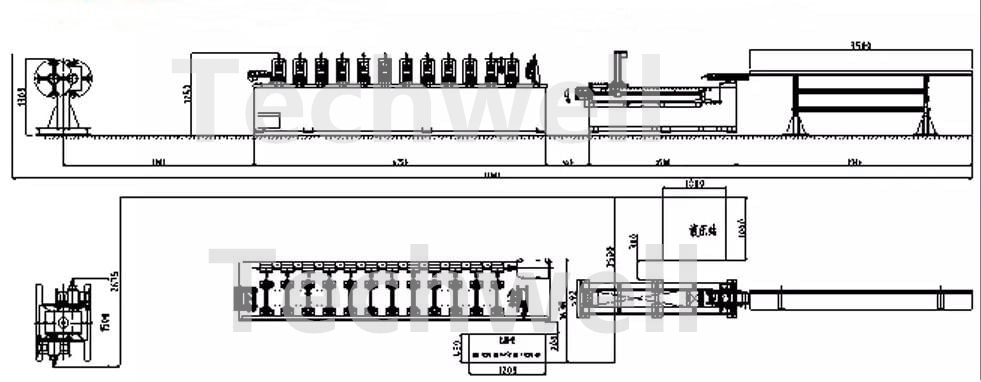

The Rack Bracing Section Roll Forming Machine Layout
